from torch.utils.tensorboard import SummaryWriter

writer  = SummaryWriter("logs") # 这行代码会在你的项目根目录下创建一个名为"logs"的文件夹

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

(method) def add_scalar(
    tag: Any,
    scalar_value: Any, # 对应图像的y轴
    global_step: Any | None = None, # 对应图像的x轴
    walltime: Any | None = None,
    new_style: bool = False,
    double_precision: bool = False
) -> None

​``` 例 ```

for i in range(100):
    writer.add_scalar("y=2x", 2*i, i)
writer.close()

1
2
3
4
5
6
7

(method) def add_image(
    tag: Any,
    img_tensor: Any,
    global_step: Any | None = None,
    walltime: Any | None = None,
    dataformats: str = "CHW"
) -> None

1
2
3
4
5

img = Image.open(image_path)
img_array = np.array(img)
print(f"图像形状: {img_array.shape}")
writer.add_image("test",img_array,1,dataformats='HW') # 由.shape可得
writer.close()

1
2
3
4
5

trans_totensor = transforms.ToTensor()
img_tensor = trans_totensor(img)
print(img_tensor.shape)
writer.add_image("ToTensor",img_tensor)
writer.close()

1
2
3
4

print(img.size)
trans_resize = transforms.Resize((224,224))
img_resize = trans_resize(img)
print(img_resize)

1
2
3
4
5
6
7
8
9

from torchvision import transforms
# 定义训练集的预处理
train_transform = transforms.Compose([
    transforms.Resize((224, 224)),           # VGG16标准输入是224x224
    transforms.RandomHorizontalFlip(),       # 数据增强：随机水平翻转
    transforms.ToTensor(),                   # 归一化到 [0.0, 1.0]
    transforms.Normalize([0.5], [0.5])       # 标准化到 [-1.0, 1.0]
])
img_tensor = train_transform(img)

1
2
3
4
5

import torchvision

train_set = torchvision.datasets.CIFAR10(root="./dataset...", train=True, download=True)

test_set = torchvision.datasets.CIFAR10(root="./dataset...", train=false, download=True)

1
2
3
4
5
6

print(test_set.classes) # 可以看到测试数据集的所有类别

img, target = test_set[0]
print(img)
print(target)
print(test_set.classes[target]) # 输出测试集第一个元素对应的类别

1
2
3

test_data = torchvision.datasets.CIFAR10("./dataset", train=False, transform=torchvision.transforms.ToTensor(), download=True)

test_loader = DataLoader(dataset=test_data, batch_size=4, shuffle=True, num_workers=0, drop_last=False)

1
2
3
4
5
6
7
8

writer = SummaryWriter("dataloader")
for epoch in range(2):
    step = 0
    for data in test_loader:
        imgs, targets = data
        writer.add_images("test_data_batch", imgs, step + epoch * len(test_loader))
        step = step + 1
writer.close()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

import torch
from torch import nn

class myModule(nn.Module):
    def __init__(self):
        super().__init__()

    def forward(self, input):
        output = input + 1 # 简单地将输出 +1 再输出
        return output

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

dataset = torchvision.datasets.CIFAR10("./dataset",train = False, transform=torchvision.transforms.ToTensor(),download=True)
dataloader = DataLoader(dataset, batch_size=64)

class myModule(nn.Module):
    def __init__(self):
        super().__init__()
        self.conv1 = Conv2d(in_channels=3,out_channels=6,kernel_size=3,stride=1,padding=0)

    def forward(self,x):
        x = self.conv1(x)
        return x

mymodule = myModule() # 模型实例化

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

step = 0
for data in dataloader:
    imgs, targets = data
    output = mymodule(imgs)
    print(imgs.shape)
    # torch.Size([64, 3, 32, 32])
    print(output.shape)
    # torch.Size([64, 6, 30, 30]) channel == 6 卷积后，channel数变化，不能直接输出图像

    step = step + 1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

input = torch.tensor([[1,2,0,3,1],
                     [0,1,2,3,1],
                     [1,2,1,0,0],
                     [5,2,3,1,1],
                     [2,1,0,1,1]], dtype=float)

input = torch.reshape(input,(-1,1,5,5))
print(input.shape)

class myMoudle(nn.Module):
    def __init__(self, *args, **kwargs):
        super(myMoudle, self).__init__()
        self.maxpool1 = MaxPool2d(kernel_size=3, ceil_mode=True)
        '''
        ceil_mode = False 就表示只有当池化核遇到的尺寸是最大尺寸（如3x3）时
        才会取其池化的结果，否则相反
        '''
    def forward(self, input):
        output = self.maxpool1(input)
        return output

mymoudle = myMoudle()
output = mymoudle(input)
print(output)

1
2
3

torch.Size([1, 1, 5, 5])
tensor([[[[2., 3.],
          [5., 1.]]]], dtype=torch.float64)

1

loss_func = nn.CrossEntropyLoss()

1
2
3
4
5
6

for input, target in dataset:
    optimizer.zero_grad() # 梯度清零
    output = model(input)
    loss = loss_fn(output, target) # 调用损失函数
    loss.backward() # 反向传播
    optimizer.step()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

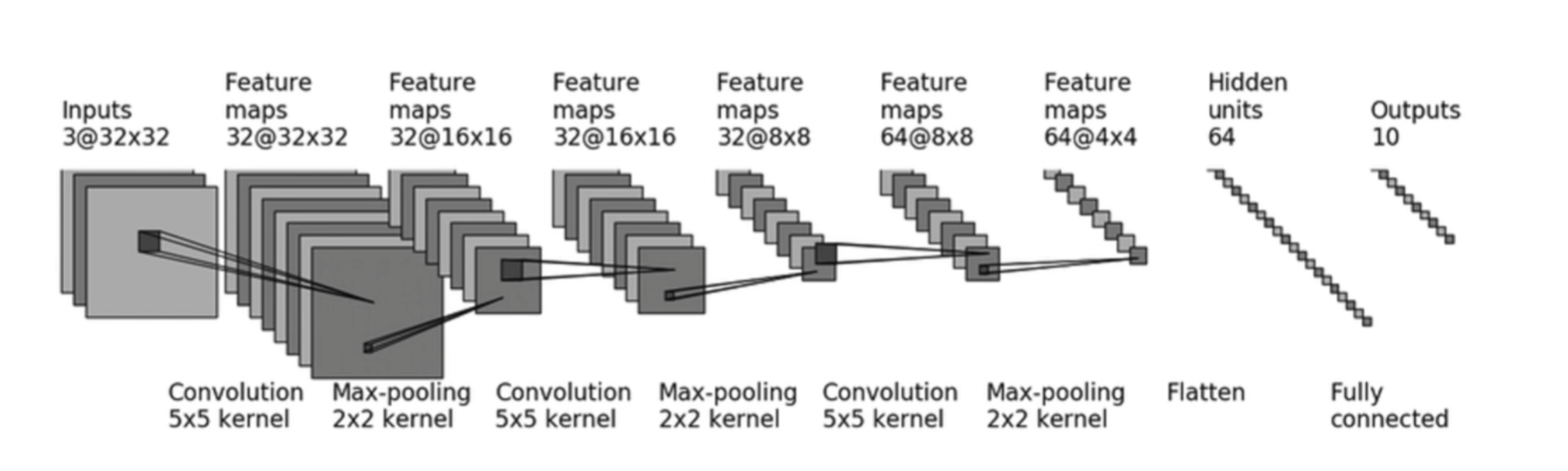

class CIFAR10_Simple(nn.Module):
    def __init__(self, *args, **kwargs):
        super(CIFAR10_Simple, self).__init__(*args, **kwargs)
        self.conv1 = Conv2d(in_channels=3, out_channels=32, kernel_size=5, padding=2)
        '''
        参数padding的数值可以从想象图像得到：5x5的卷积核，当中心在图像的(0,0)，那么卷积核是扩展出去2格的。上面是简单判断的方法，实际应该用尺寸计算公式来代入计算（参考“Conv卷积”节内容）
        '''
        self.model_s = Sequential(
            Conv2d(in_channels=3, out_channels=32, kernel_size=5, padding=2),
            nn.ReLU(),
            MaxPool2d(kernel_size=2),
            Conv2d(in_channels=32, out_channels=32, kernel_size=5, padding=2),
            nn.ReLU(),
            MaxPool2d(2),
            Conv2d(32,64,5,padding=2),
            nn.ReLU(),
            MaxPool2d(2),
            Flatten(),
            Linear(1024, 64),
            nn.ReLU(),
            Linear(64, 10)
        )

    def forward(self, x):
        '''
        x = self.conv1(x)
        x = self.maxpool1(x)
        x = self.conv2(x)
        x = self.maxpool2(x)
        x = self.conv3(x)
        x = self.maxpool3(x)
        x = self.flatten(x)
        x = self.linear1(x)
        x = self.linear2(x)
        '''
        x = self.model_s(x)
        return x

1
2
3
4
5
6

dataset_transfrom = tf.Compose([tf.ToTensor(),tf.Normalize((0.5,0.5,0.5),(0.5,0.5,0.5))])
train_data = torchvision.datasets.CIFAR10("./dataset", transform=dataset_transfrom, download=True)
test_data = torchvision.datasets.CIFAR10("./dataset", train=False, transform=dataset_transfrom, download=True)
# --------
train_loader = DataLoader(dataset=train_data, batch_size=64, shuffle=True, drop_last=True)
test_loader = DataLoader(dataset=test_data, batch_size=64, shuffle=True, drop_last=True)

1
2
3
4
5

cifar = CIFAR10_Simple()
print(cifar)
input = torch.ones((64, 3, 32, 32)) # 同数据集图片尺寸的测试
output = cifar(input)
print(output.shape)

1
2
3
4
5
6

writer = SummaryWriter("./logs")
writer.add_graph(cifar, input)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = CIFAR10_Simple().to(device)
loss_func = nn.CrossEntropyLoss() # 交叉熵损失函数
optim = torch.optim.SGD(cifar.parameters(), lr=0.01) # 学习率

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

total_step = 0
for epoch in range(10):
    # --- 训练部分 ---
    model.train()
    for data in train_loader:
        imgs, targets = data
        outputs = model(imgs.to(device))
        loss = loss_func(outputs, targets.to(device))

        optim.zero_grad()
        loss.backward()
        optim.step()

        # 记录训练损失
        writer.add_scalar("Train_Loss", loss.item(), total_step)
        total_step += 1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

model.eval()
    total_test_loss = 0
    total_accuracy = 0
    with torch.no_grad(): # 测试时不需要计算梯度，节省性能
        for data in test_loader:
            imgs, targets = data
            imgs, targets = imgs.to(device), targets.to(device)
            outputs = model(imgs)

            # 计算总损失
            loss = loss_func(outputs, targets)
            total_test_loss += loss.item()

            # 计算准确率：argmax(1) 找到概率最大的类别索引
            accuracy = (outputs.argmax(1) == targets).sum()
            total_accuracy += accuracy

1
2
3
4
5
6
7

# 输出到 TensorBoard
    writer.add_scalar("Test_Loss", total_test_loss / len(test_loader), epoch)
    writer.add_scalar("Test_Accuracy", total_accuracy / len(test_data), epoch)

    print(f"Epoch {epoch+1} 结束，准确率: {total_accuracy / len(test_data)}")

writer.close()
